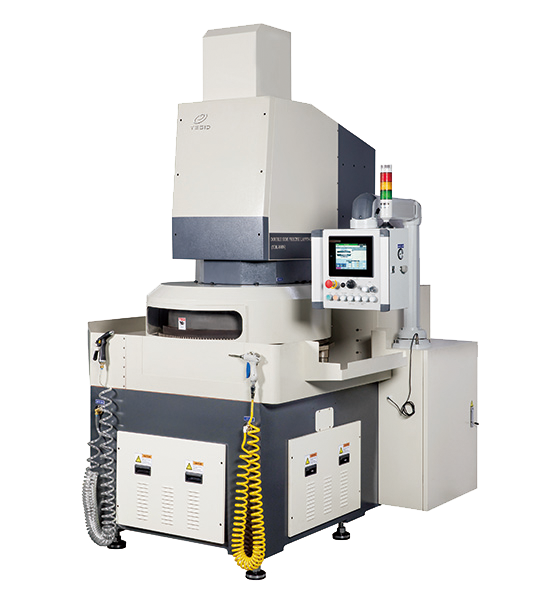

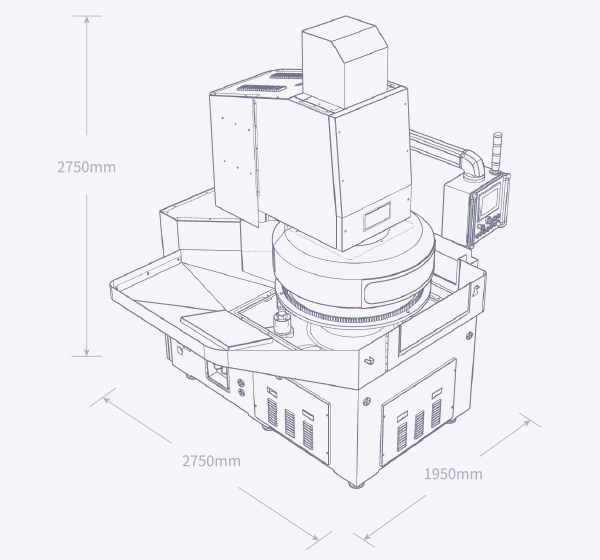

Double Side Fine Grinding \ Lapping Machine:

Integrated casting bed

High rigidity and stability.

Three independent power motors

The upper wheel, lower wheel and inner ring three main shafts are independently driven by three high power motors.

On-line dimension control

Ensure the consistency of each processing dimension.

Five-stage processing mode

Adopt five-stage pressure control system.Pressure, speed and steering at each stage can be adjusted at will.

Extensible

Can be equipped with semiautomatic or full-automatic feeding and unloading system.

Mitsubishi

Adopt Mitsubishi control system with high reliability and strong functionality

  • Pressurization mode

    Air c ylinder
  • Maximum Pressure

    1100kgf
  • Wheel diameter

    840mm
  • Ring width

    250mm
  • Max. diameter of grinding

    280mm
  • Max. wheel speed

    105rpm
  • Max. inner gear speed

    70rpm
  • Upper disc drive power

    11kw
  • Lower wheel drive power

    11kw
  • Inner gear drive power

    3.5kw
  • Weight

    4500kg

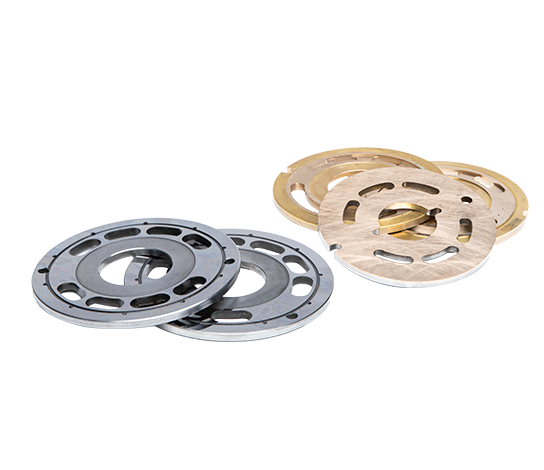

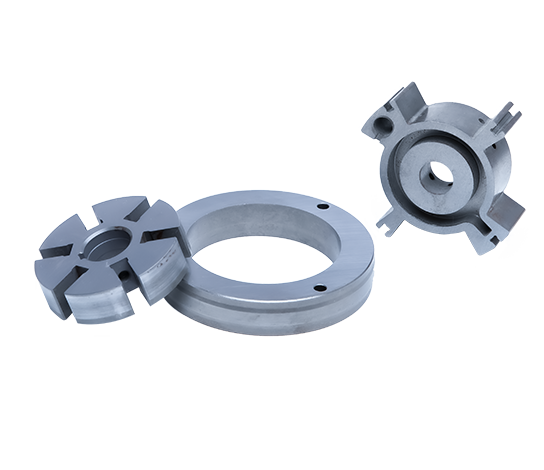

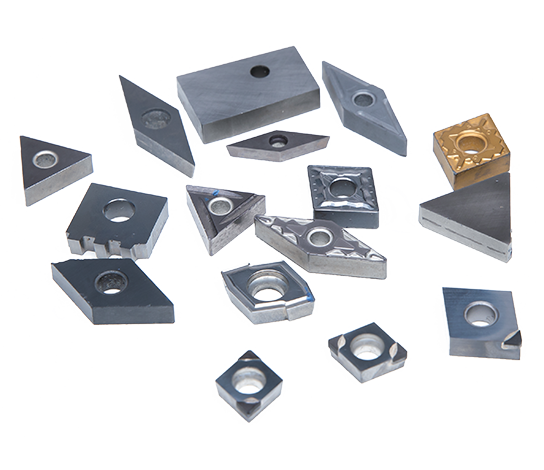

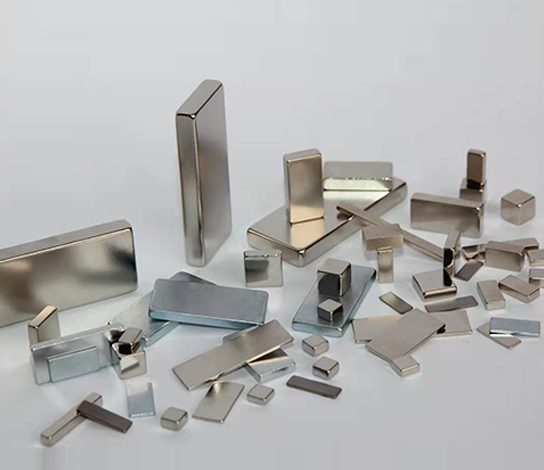

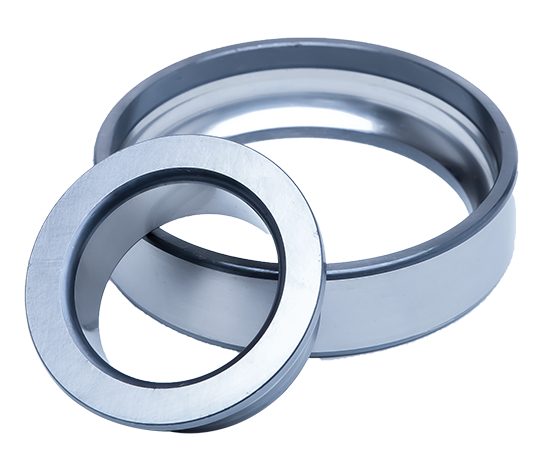

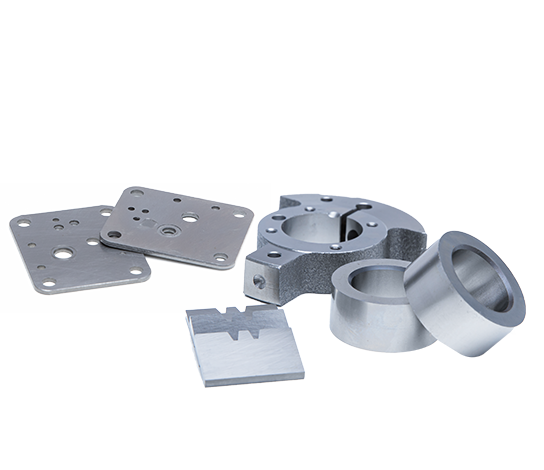

Application area
